Compact Freezers3.5 cu ft
SOFEDY YSJ-WWHTJ-001@JWCHYT48 3.5 cu ft Compact Freezer
Compressor parameters: Compressor model: BD25H Rated voltage frequency: 12-24V (DC) Working Back Pressure: Low Back Pressure (L. B.
Best price
$215
Price checked 07/16/2026 · lowest at Amazon
We may earn a commission when you buy through our links, at no extra cost to you. Learn more
Retailer prices
Prices and availability come from recent retailer feeds and validated cross-retailer matches. The retailer’s page shows the final price at checkout.
Why this one
Why the SOFEDY YSJ-WWHTJ-001@JWCHYT48 3.5 cu ft Compact Freezer
Holds more than you think
At 3.5 cu ft, there's room for roughly 42 cans — plus everyday drinks, snacks, and leftovers in one compact footprint.
Made to be a compact freezer
Compact frozen storage for small kitchens, garages, and second-freezer duty.
Figures above are derived from the manufacturer’s published specs; running-cost estimate uses the US average electricity rate and will vary by location and use.
Specifications
Key specs
Features
What stands out
The working temperature of the controller is not higher than 50°C; when the temperature of the controller shell is too high, the compressor will stop running and generate over-temperature protection. Application: Refrigerator and freezer within 100L.
Temperature switch: The temperature switch is connected to the C and T terminals of the controller. If no resistor is connected in between, the compressor will run at 2000rpm when the temperature switch is closed.
External Fan: A 12V DC fan can be connected between the terminals (F+) and (F-) of the controller, the positive terminal of the fan is connected to the (F+) terminal of the controller and the negative terminal is connected to the (F-) terminal of the controller. The output between terminals (F+) and (F-) will always remain at 12V when the input voltage to the controller exceeds 12V. The fan must be a 12V DC fan regardless of whether the input voltage system is 12V or 24V.
The operating temperature of the controller is not greater than 50°C; when the temperature of the controller case is too high, the compressor will be stopped and over-temperature protection will be generated.
The controller automatically adapts to dual voltage, i.e. DC 12V and 24V power input systems. The maximum input voltage is 17V for DC 12V systems and 31.5V for 24V systems.
Frequently asked
Product questions
Is the SOFEDY YSJ-WWHTJ-001@JWCHYT48 3.5 cu ft Compact Freezer a good fit for my space?
The SOFEDY YSJ-WWHTJ-001@JWCHYT48 3.5 cu ft Compact Freezer is a 3.5 cu ft compact freezer from SOFEDY.
How much does the SOFEDY YSJ-WWHTJ-001@JWCHYT48 3.5 cu ft Compact Freezer cost?
The lowest current catalog offer is $215 at Amazon. Current direct retailer links on this page include Amazon. Final price and availability are confirmed on the retailer page.
What are the key size specs for the SOFEDY YSJ-WWHTJ-001@JWCHYT48 3.5 cu ft Compact Freezer?
Capacity is listed as 3.5 cu ft.
Which specs are available for the SOFEDY YSJ-WWHTJ-001@JWCHYT48 3.5 cu ft Compact Freezer?
The product record includes Model, Type, Capacity. Those fields come from the catalog/spec feeds shown on this page; MiniFridge.com does not invent ratings or reviews.
Overview
The full picture

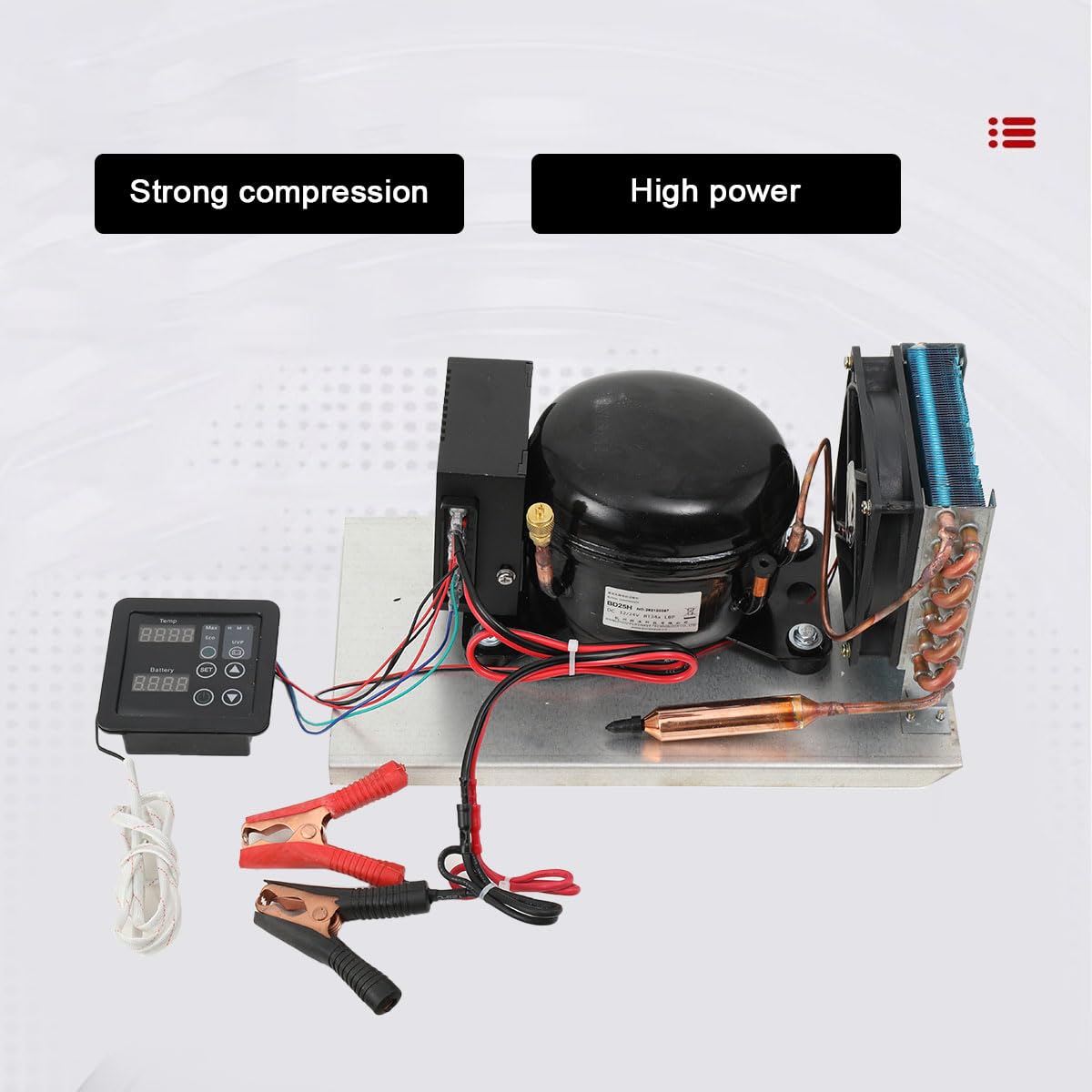

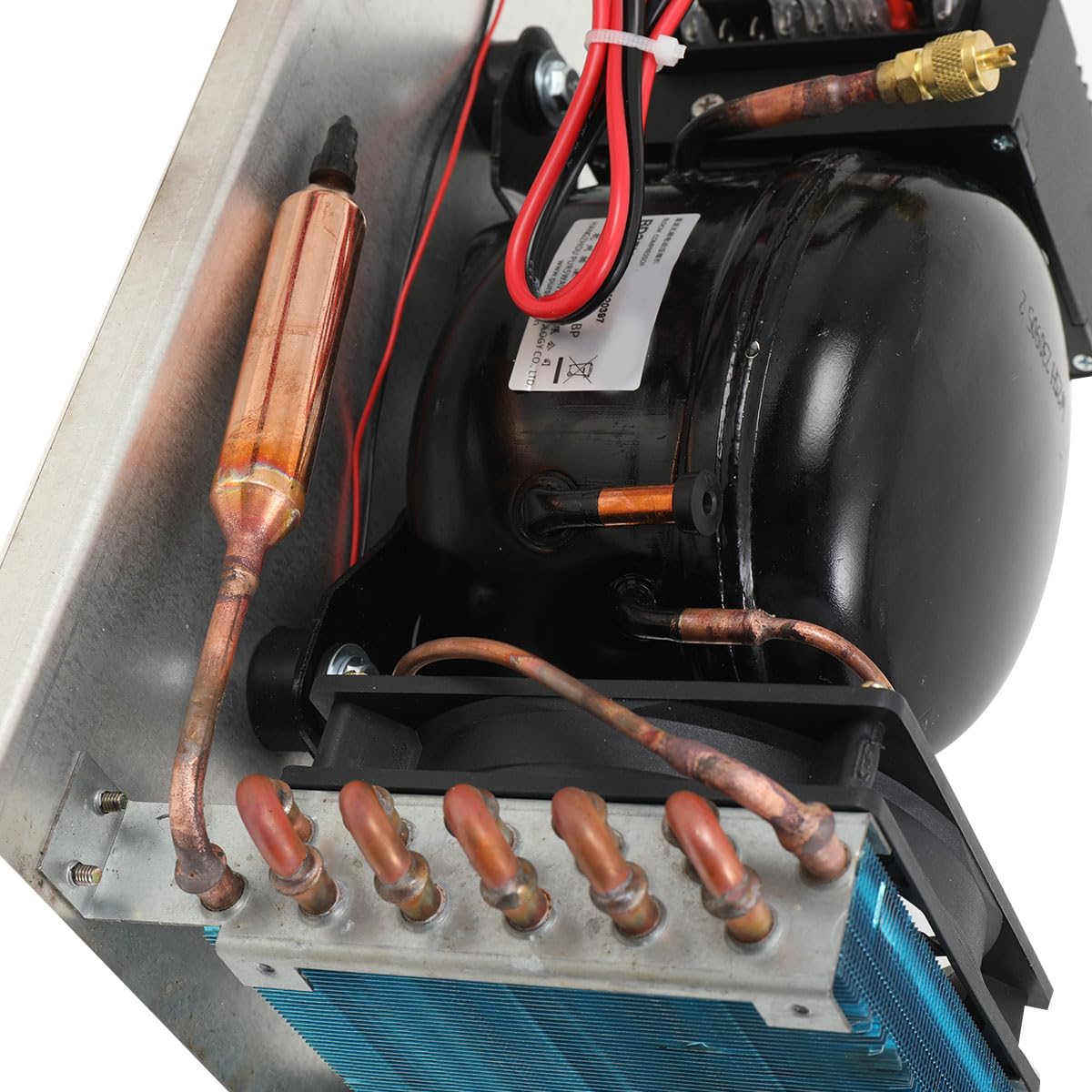

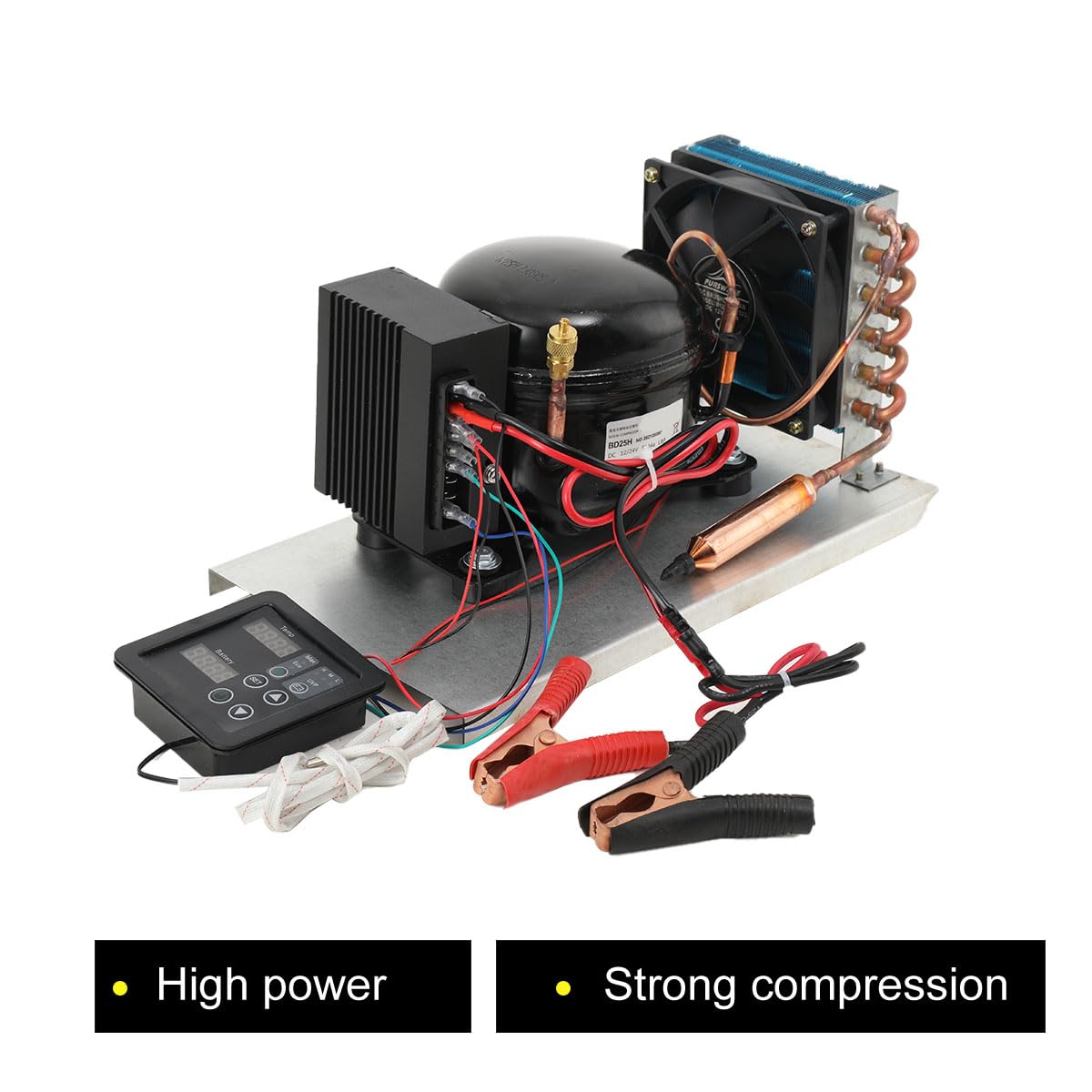

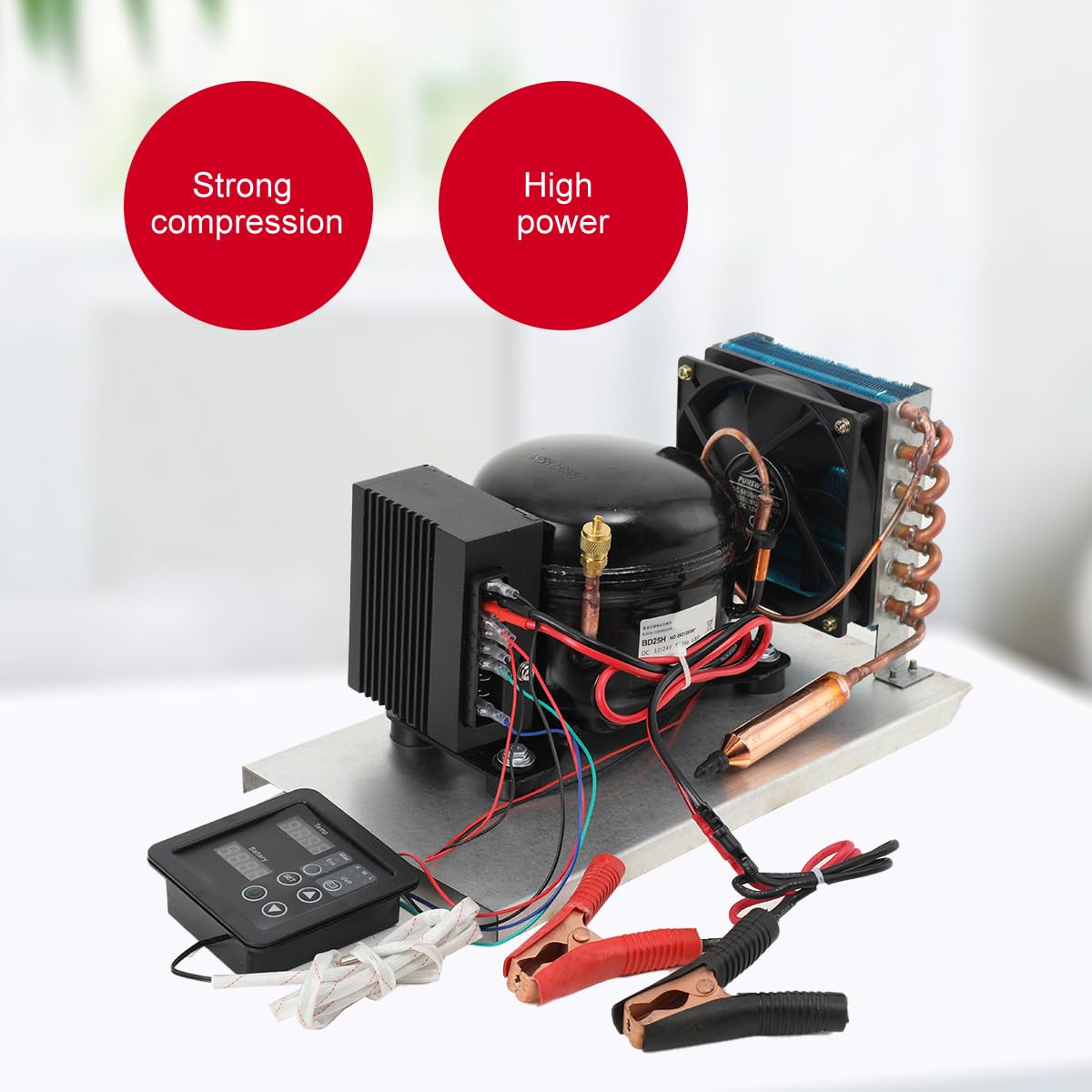

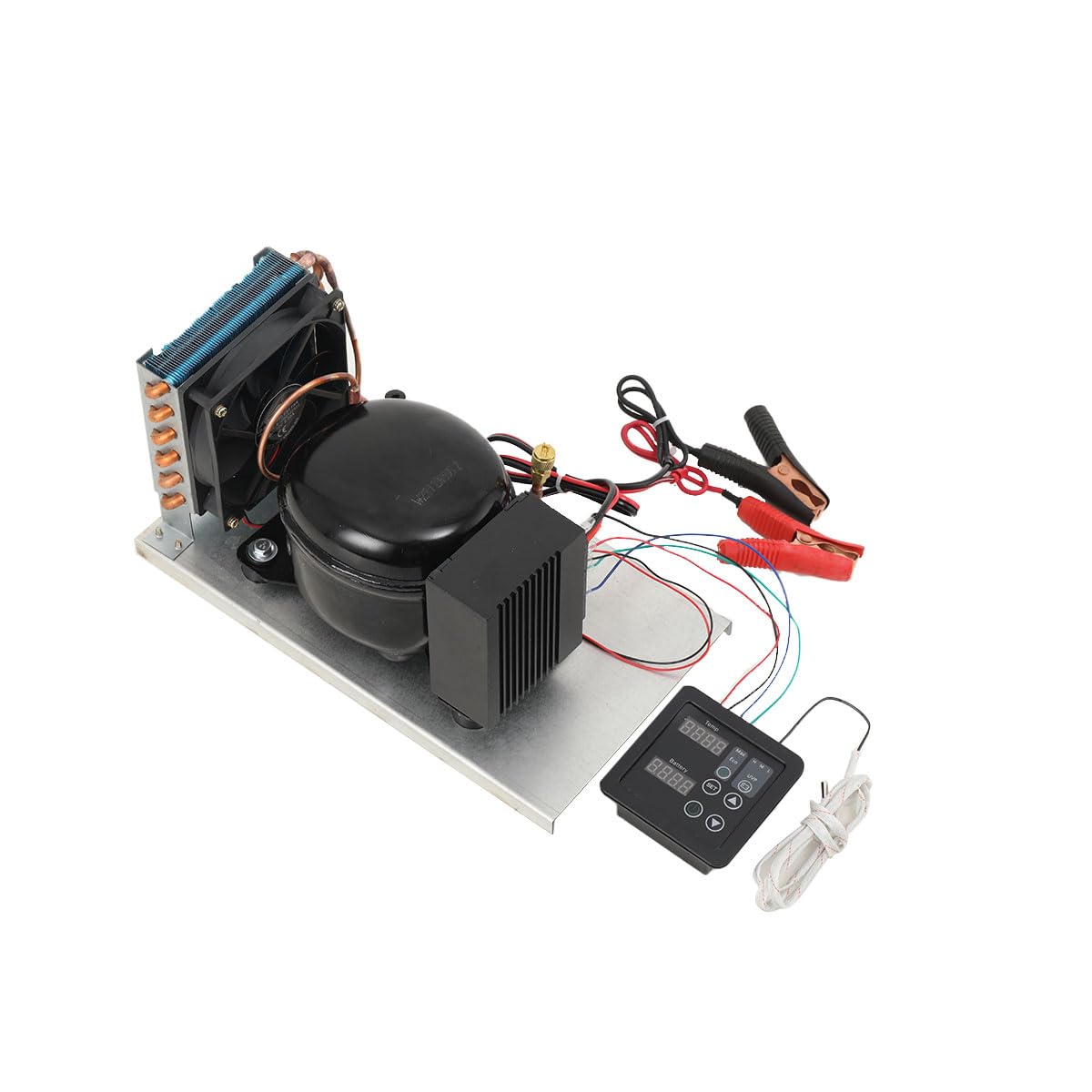

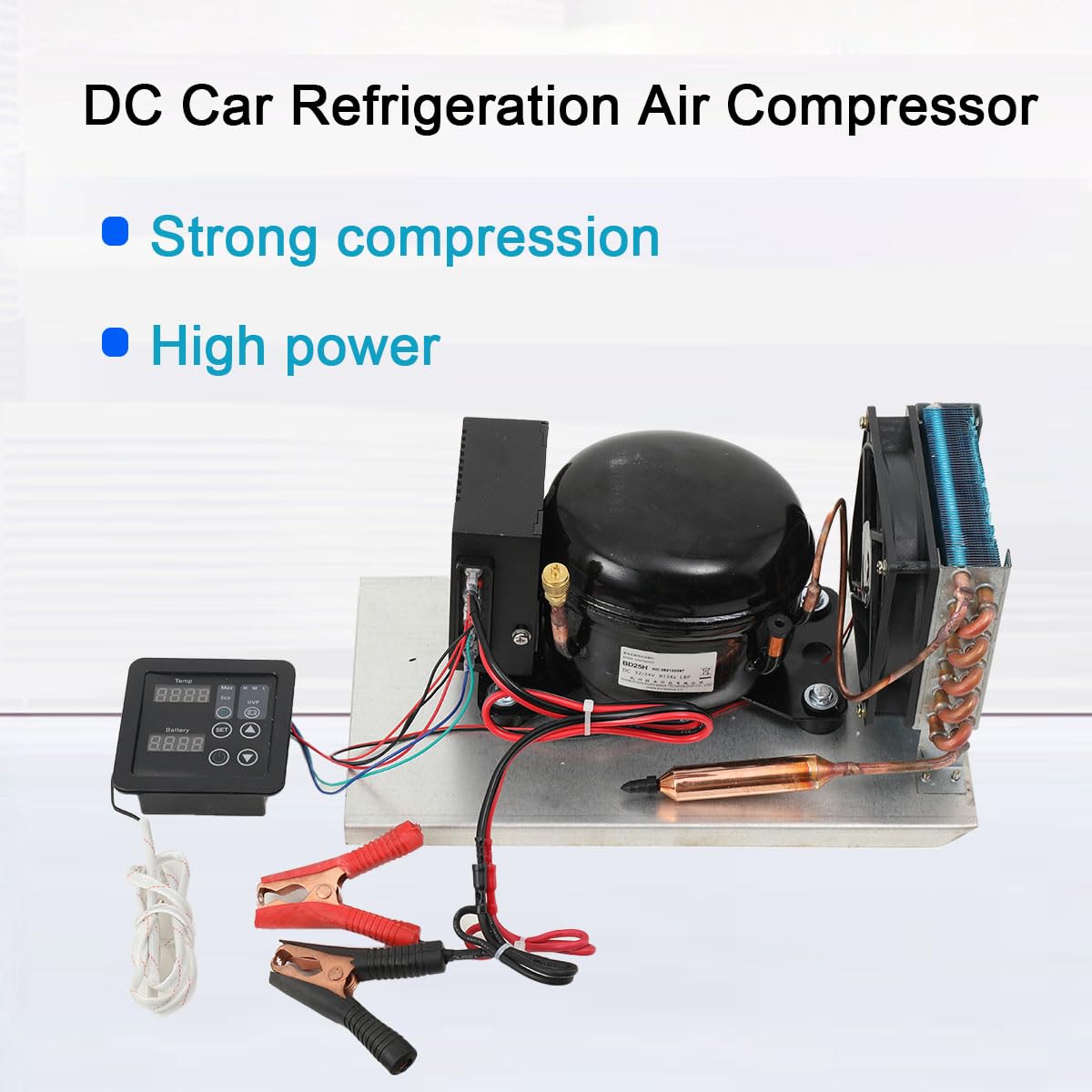

Compressor parameters: Compressor model: BD25H Rated voltage frequency: 12-24V (DC) Working Back Pressure: Low Back Pressure (L.B.P) Cooling status: natural cooling / air-cooled Throttling device: capillary tube Motor type: BLDC Ambient temperature : 0～43℃ Evaporating temperature : -35～-10℃ Operating voltage range : 9.6～17/21.3～31.5V Max. exhaust pressure : 1.86 MPa(abs) Max. condensing temperature : 65℃ Max. winding temperature : 130℃ Max. case temperature : 95℃ Max. exhaust temperature : 120℃ Starting performance : 12/24V [0.5/0.5MPa(abs) Minimum case pressure: 35 bar Oil type: Ester oil Oil filling volume : 150ml±10ml Diameter of suction pipe (inner diameter) : Φ6.2±0.1 mm Exhaust pipe diameter (inner diameter) : Φ5.0±0.1 mm Process pipe diameter (inner diameter): Φ6.2±0.1 mm Compressor noise : ≤40dB(A) Vibration : 0.6m/s²。 Working volume:2.5cm³ Cooling Capacity: RPM is 2000, cooling capacity is 45W , 38.7 Kcal/h ,153.5 btu/h,Efficiency COP is 1.25 w/w,electric current is 2.9/1.4，input Power is 36W RPM is 2500, cooling capacity is 55W , 47.3 Kcal/h ,187.7 btu/h,Efficiency COP is 1.25 w/w,electric current is 3.5/1.7,input Power is 44W RPM is 3000, cooling capacity is 64W , 55 Kcal/h ,218.4 btu/h,Efficiency COP is 1.25 w/w,electric current is 4.1/2.0, input Power is 51W RPM is 3500, cooling capacity is 74W , 63.6 Kcal/h ,252.5 btu/h,Efficiency COP is 1.25 w/w,electric current is 4.9/2.4, input Power is 59W Digital Thermostat Parameters: Voltage range: DC 12-24V, limit 35V Operating current: 0.1A Door Lamp Function: Door lamp voltage follows input voltage Temperature probe accuracy: ±1℃ Operating ambient temperature: -10℃～60℃, relative humidity 20%～90% Package Including Packing List: 1 x Compressor 1×Temperature controller
